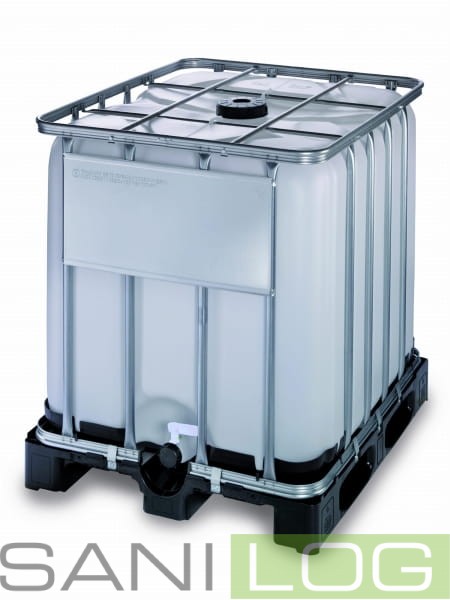

IBC 1000L/UN/225/50/REPLACEABLE/EPDM/PE

TOPline IBCs have been inspected and are approved for filling hazardous liquids according to UN 31 HA1/Y/D/BAM.

The UN marking is affixed to the inner container and to the rating plate. Made of HDPE - resistant to cracks, UV rays.
Containers reduce the costs of storage and transportation of liquid materials compared to other types of packaging.
Simple operation with forklifts during loading and unloading, optimizes process costs (no specialized equipment is required
equipment).

A stable pallet with a fixed steel frame ensures safety during handling.

Direct visibility of the residue content through the use of high-quality polyethylene of specialized density, and a fill level scale located on the side edge of the container tank.

Almost 100% emptying of residues saves material and reduces waste.

IBC 1000L TECHNICAL DATA:

• Overall dimensions: 1200 mm x 1000 mm x 1170 mm
• Weight: +-53 kg
• Approval: YES
• Capacity: 1000L
• Filler opening: NW 225 mm
• Drain valve: NW 50 mm replaceable EPDM
• Frame: 16-bar welded steel tube frame, galvanized
• Inner container: Blow molded
• Material: HDPE High Density Polyethylene + Frame (Steel, Galvanized)
• Pallet: Plastic
• Nameplate: YES

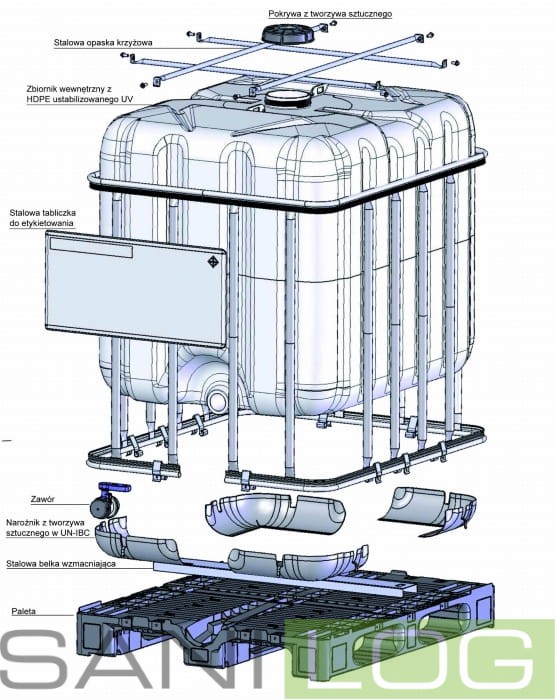

The IBC 1000l set includes:

• IBC 1000 liters UN
• HDPE Pallet With Galvanized Basket
• Filling hole cover, solid NW 225
• Replacement valve combined with mounting clamp and solid nut NW 50

In other offers, we have another extensive range of IBCs.

Different capacities in different sprue and outlet configurations, different seals and three bases – wood, plastic, hybrid.

A full range of IBC accessories. All of this enables the IBC to be properly configured for the safe and efficient transport of liquid media.

The universal IBCs from WERIT meet the requirements of a wide variety of industries and have proven themselves in practical use for years. IBCs are used in the transport of neutral, hazardous and flammable liquids.

WERIT IBCs with their unique design have been optimized for reuse and recycling.

IBC SIZES & EQUIPMENT

Werit IBCs are available with volumes of 300, 600, 800 and 1000 litres. Depending on the IBC line and the requirement profile, there are special equipment modules.
You can choose the right equipment.

IBC 300 L
A compact size that is an alternative to a plastic drum, with all the benefits of an IBC. Advantageous size for liquids with a short shelf life.

IBC 600 L

Advantageous, medium size with Euro pallet dimensions, which is used as an intermediate step between a typical 1000 l IBC and a drum.

IBC 1000 L

Popular IBC size with industrial pallet basic dimensions (1200 x 1000 mm)

If we don't have something in our offer - write to us.
